Simple Test 2 - BaF

from MoleCool import System, np
system = System(description='SimpleTest2Traj_BaF',load_constants='138BaF')

# specify initial velocity and position of the molecule
system.v0 = np.array([200,0,0])   #in m/s
system.r0 = np.array([-2e-3,0,0]) #in m

# set up the cooling laser and first repumper with their wave vectors k and positions r_k
FWHM,P = 1e-3,5e-3 # 1mm and 5mW
for lamb in np.array([859.830, 895.699])*1e-9:
    for rx in [0, 4e-3]:
        system.lasers.add_sidebands(lamb=lamb,P=P,FWHM=FWHM,pol='lin',
                                    r_k=[rx,0,0], k=[0,1,0],
                                    offset_freq=19e6,mod_freq=39.33e6,
                                    sidebands=[-2,-1,1,2],ratios=[0.8,1,1,0.8])

# include first two vibrational levels of electronic ground state and the
# first vibrational level of the excited state
system.levels.add_all_levels(v_max=1)

System is created with description: SimpleTest2Traj_BaF
/home/docs/checkouts/readthedocs.org/user_builds/molecool-py/checkouts/v3.7.2/MoleCool/Levelsystem.py:1229: UserWarning: No pre-defined states found for electronic state X with: v=1
...instead the same states as for v=0 were imported!
  warnings.warn(text+'\n...instead the same states as for v=0 were imported!')

system.calc_rateeqs(t_int=40e-6,magn_remixing=False,
                    trajectory=True,position_dep=True)

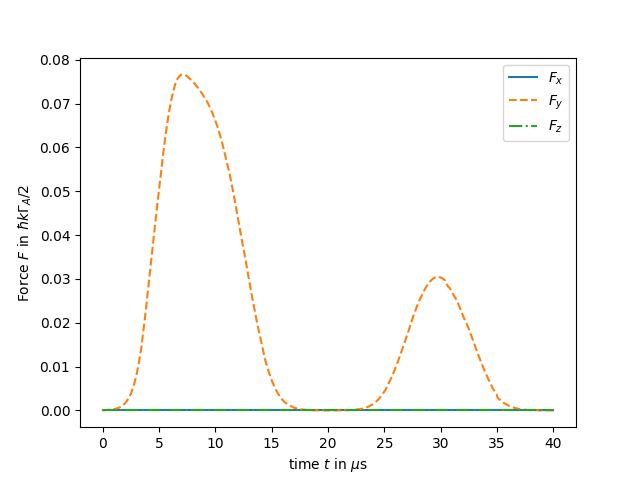

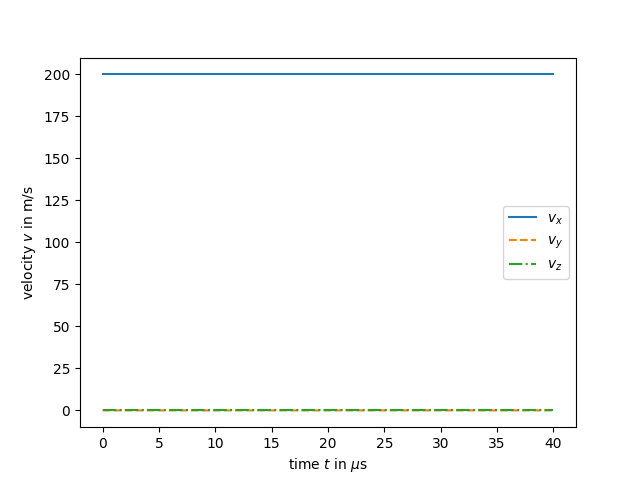

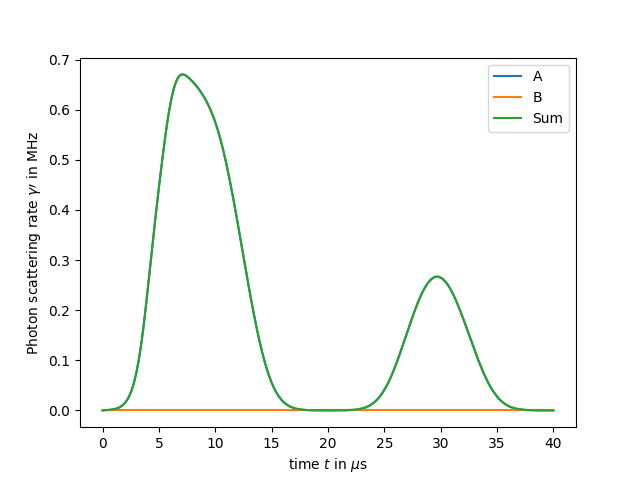

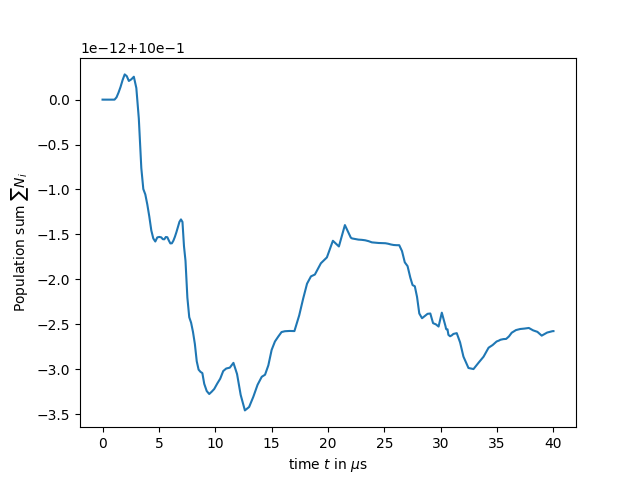

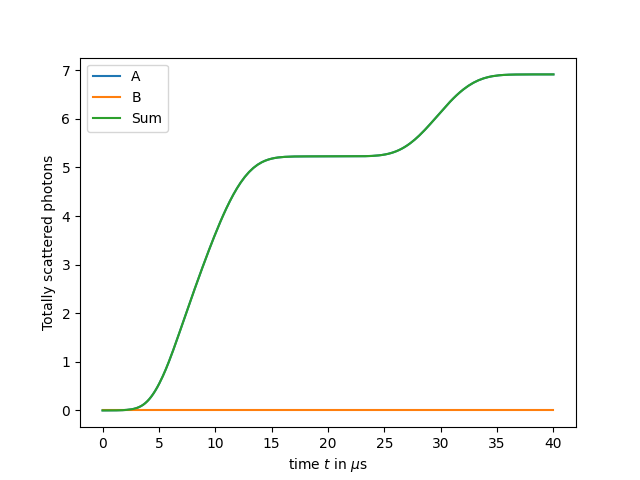

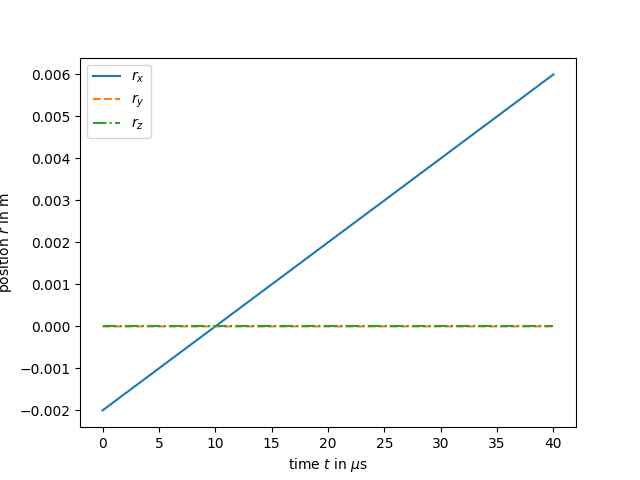

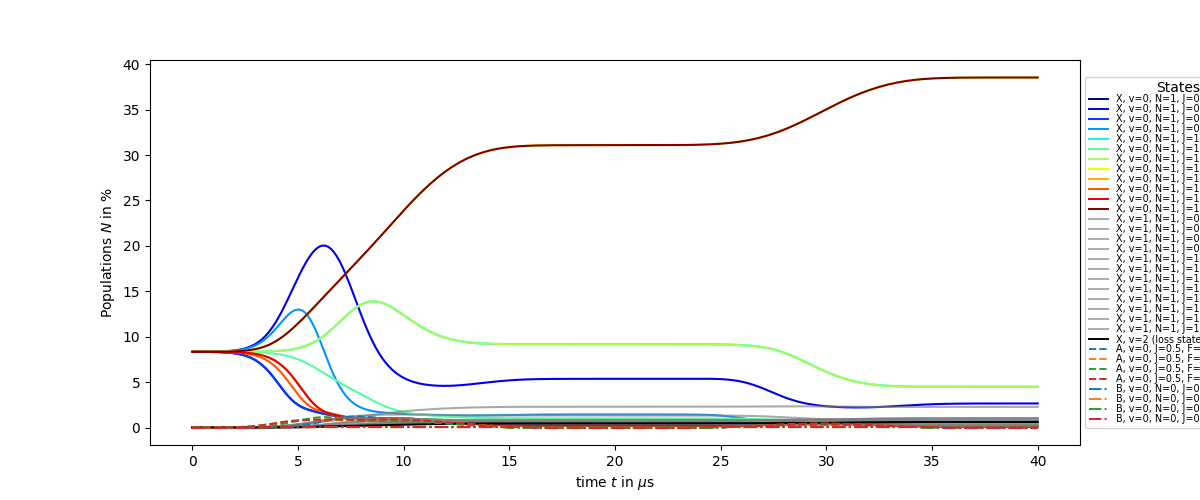

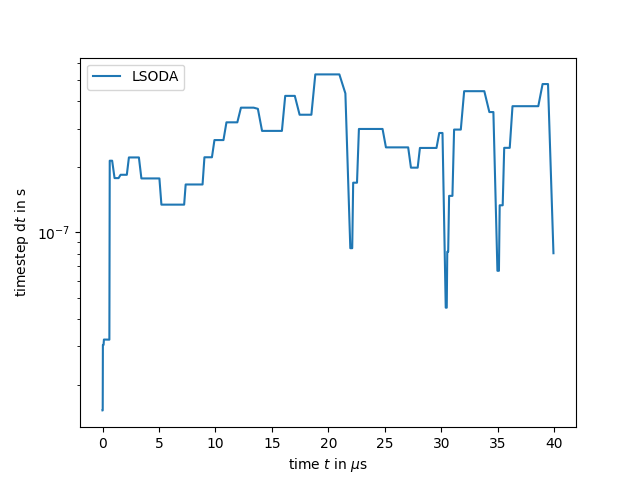

# plot scattering rate, scattered photons, velocity and position, ...
system.plot_all()

•
•
•
•
•
•
•
•

Solving ode with rate equations... Execution time: 7.6648 seconds
Scattered Photons (A): 6.914848
Scattered Photons (B): 0.000000
/home/docs/checkouts/readthedocs.org/user_builds/molecool-py/checkouts/v3.7.2/MoleCool/System.py:574: UserWarning: For calculation of hbar * k * Gamma/2, Gamma of the first ElSt is used
  warnings.warn("For calculation of hbar * k * Gamma/2, Gamma of the first ElSt is used")
/home/docs/checkouts/readthedocs.org/user_builds/molecool-py/checkouts/v3.7.2/MoleCool/System.py:576: UserWarning: For calculation of hbar * k * Gamma/2, the wavelengths of the lasers' wavelengths differ by 2.04 % (which is more than 0.10 %). The returned unit might thus me inappropriate.
  warnings.warn(
